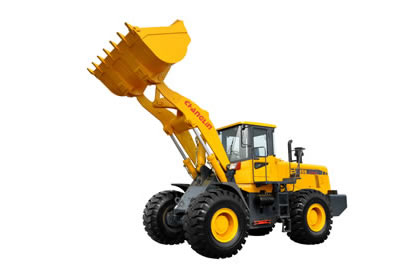

956 Wheel Loader

1. This 956 Wheel Loader is equipped with WeiChai-branded Engine
2. 3 forward & 3 reverse gears
3. Combination seal for leak-free performance

Technical Specification:
Model 956
Length×Width×Height(mm) 8130×2946×3450
Rated load(Kg) 5000
Rated bucket capacity(m3) 3.0
Operating weight(Kg) 16700
Diesel engine WeigChai WD10G 220E21
Rated output(KW) 162
Transmission case CHANGLIN
Gear positions 3 forward and 3 reverse
Max. traction (KN) 150
Max. breakout force(KN) 165
Max. dump clearance(mm) 3100
Dump reach(mm) 1150
Wheel base(mm) 3200
Total cycle time (s) 11
Changlin Construction Machinery and Engineering Vehicle, High Quality!!
